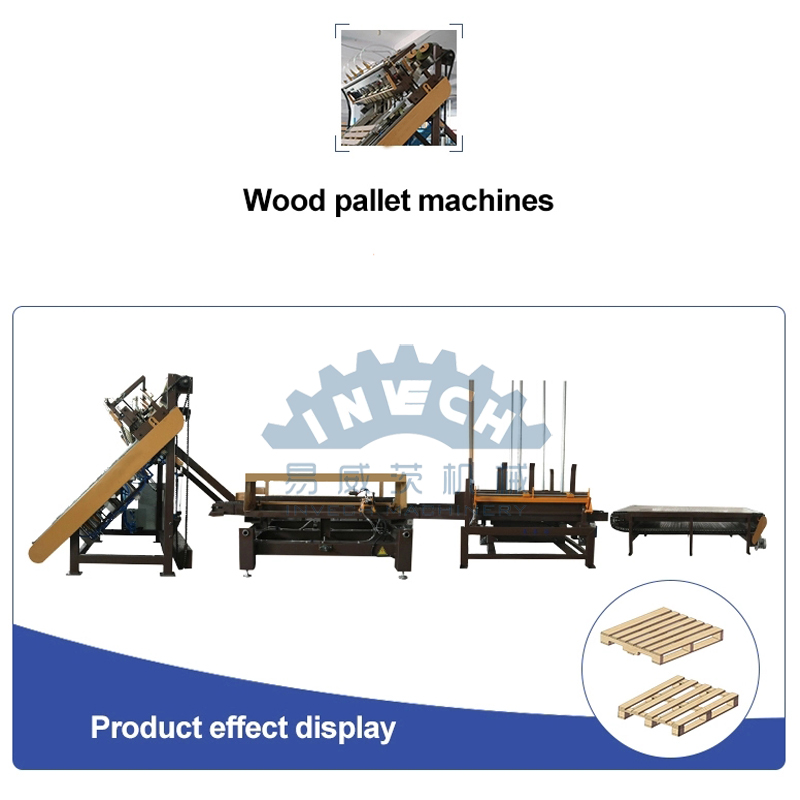

Semi-automatic EU Wooden Pallet Nailing Line Nailer Machine
Brief Introduction:
The blocks nailing machines here including three parts,the blocks nailing machine,top deck nailing machine and assembly machine,which totally needs about 2workers to finish the processing. Also we can add the further processing machines behind to make it working as one line.
Technical Parameters:
|
Product name |
Wood Pallet Nailing Machines |
|
Model |
YPM-1300 |
|
Working mode |
Man hand feeding and automatic nailing and lifting |
|
Operation mode |
PLC Control |
|
Operational mode |
Pneumatic operation |
|
Voltage and power |
380V three-phase，50hz, 2kw*3 Servo motor |
|
Air pressure |
0.8MPA |
|
Tank size |
0.2 cubic |
|
Nail gun speed |
7 times /second. |
|
Production effciency |
400-500 pcs/8hrs by one person |
|
Apply a nail |
Less than 80mm |
|
Weight |
2000kg |
|
Size |
Host machine 2283*1899*2320mm |
|
Weight |
2000kg/set |
